Dejavoo Z8 - Quick Reference Guide
Dejavoo Z9 & Z11 - Quick Reference Guide
SETUP INSTRUCTIONS
If Phone Line, just plug in and run a test transaction.

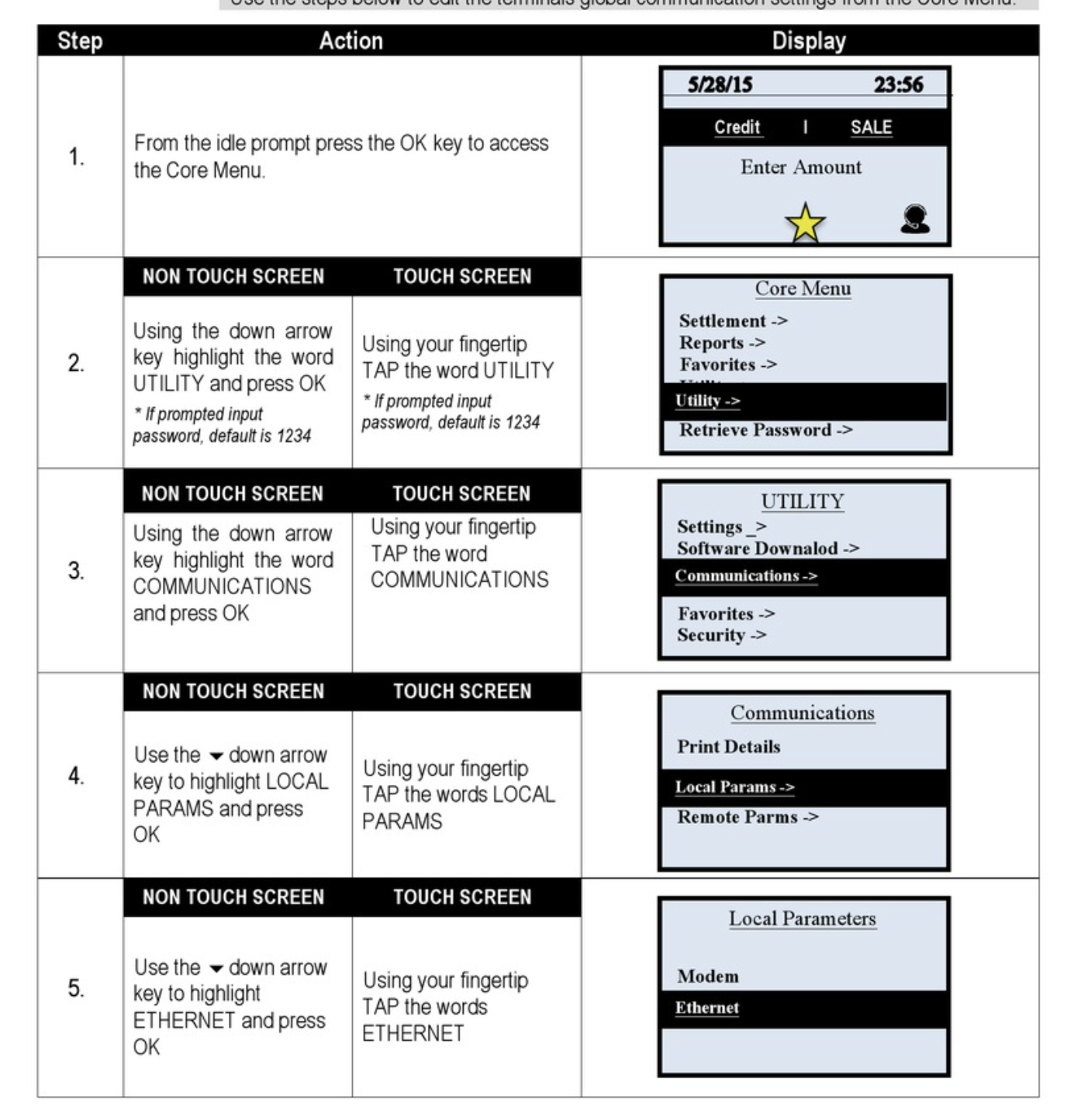

Step 5 Choose Ethernet or Wifi - if selecting WIFI Scan Network with Green OK Key. Select wifi - Configure - Set Password - put in password-OK -Yellow back Arrow - Connect - F2 for Yes - If connected, you will see Disconnect as an option. X out (wifi bars will be black when connected) and run a test transaction.

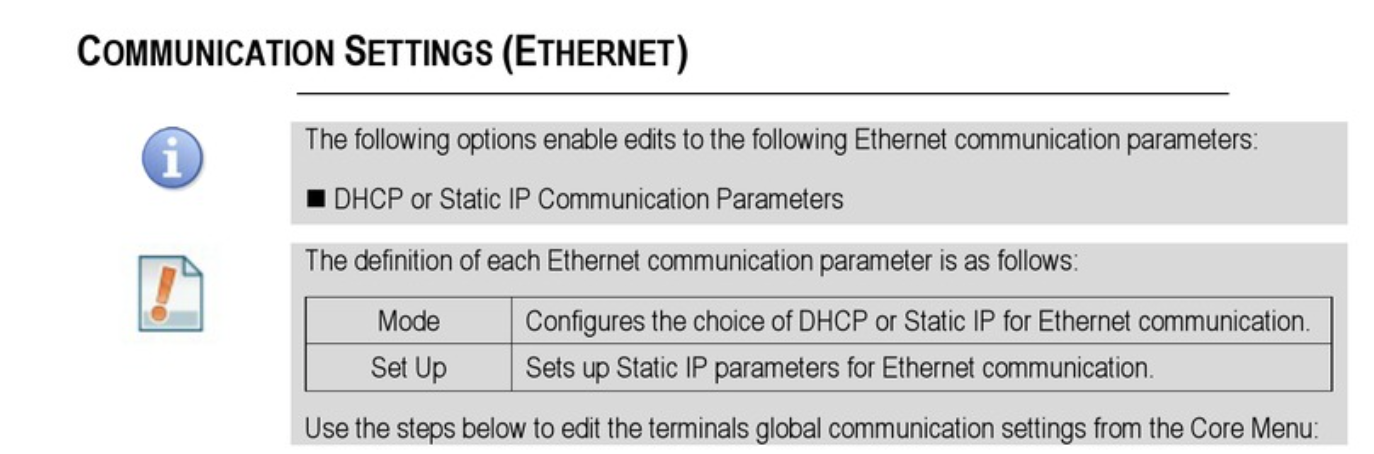

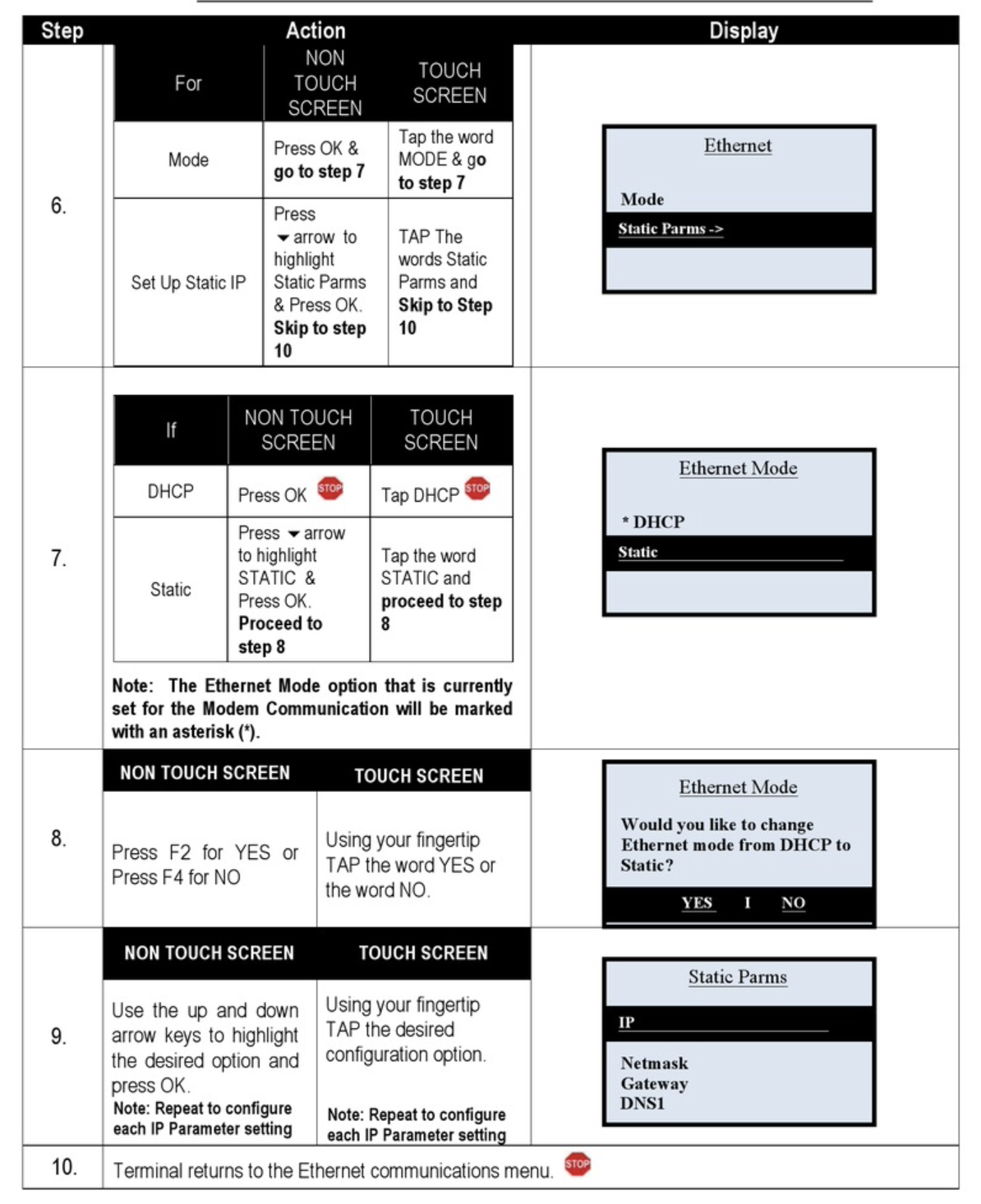

If selecting Ethernet - Move on to #6
